MotoXcycle MXC 10” wide custom round oil tank with spin on oil filter compartment

MotoXcycle MXC 10” wide, 5” round custom oil tank for custom applications.  Fully TIG welded, 6061-T6 aerospace aluminum. Battery box fits stock softail battery. Spin-on  oil filter compartment. Bungs (inlet/outlet group) are 1/4NPT.  Fill neck accepts stock Harley-Davidson oil caps from 1999 and under Softails. Aftermarket caps with the same specifications will also work.

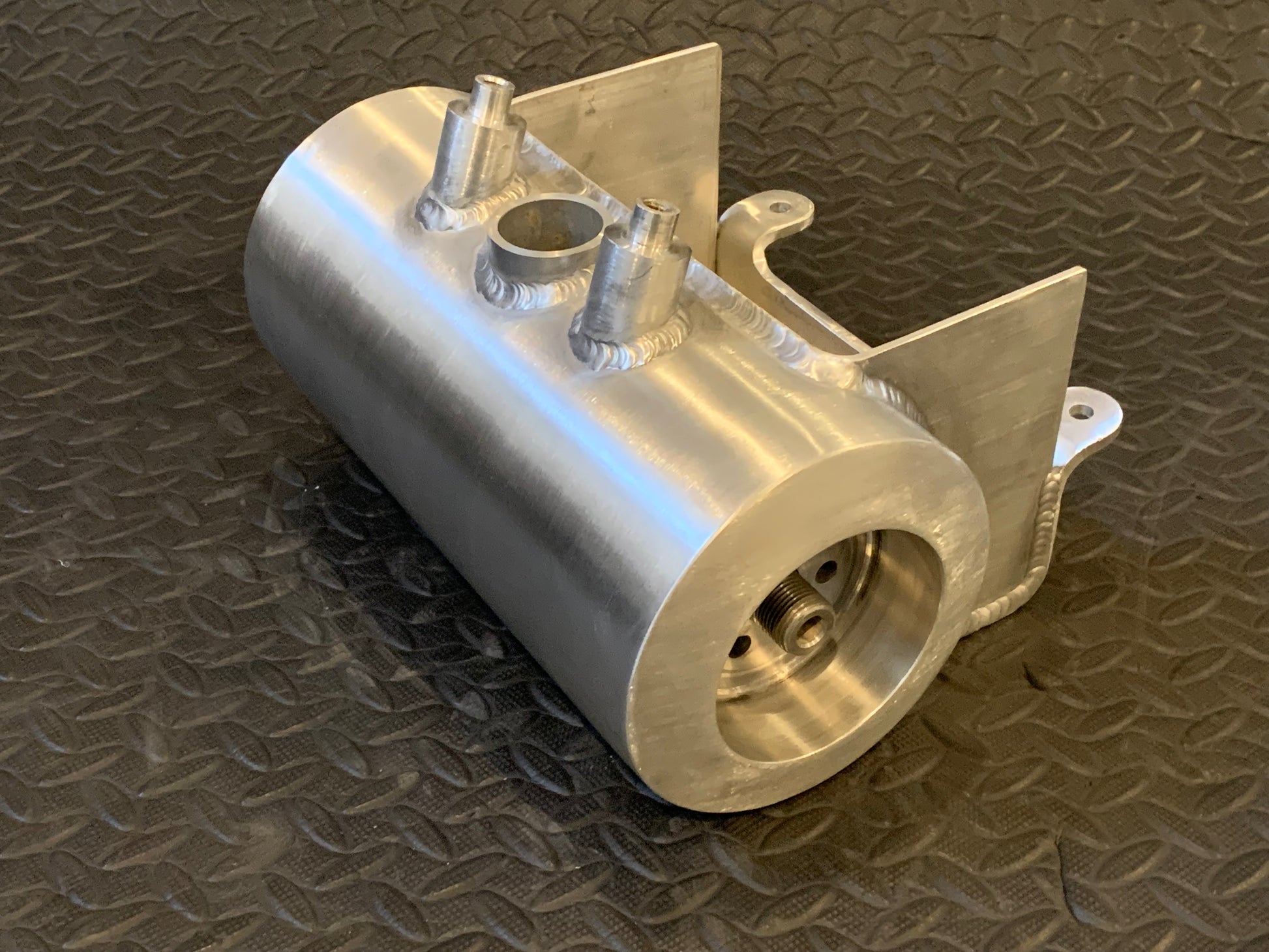

This beautiful hand crafted 5” round aircraft aluminum oil tank features a compartment to accept a spin-on oil filter and a battery box.

Technical specifications:
Tank width: 10"

Tank diameter: 5"

Inlet/Outlet group location:  35 degrees up from lowest point.  When the tank is installed on the bike, starting from the throttle side the bung sequence is Feed, Vent, Return.  The Drain bung is at 0 degrees and is the bung closest to the rear of the bike. All inlet/Outlets (bungs) are machined to accept 1/4NPT fittings. Return bung has an internal line that brings the oil to the oil filter located on the left side of the tank. The feed bung is internally raised to prevent contaminants from entering into the oil delivery system. The vent bung has an internal line that provides venting close to the internal ceiling of the tank. The drain bung found towards the rear of the inlet/outlet group and at the very bottom of the tank is internally tapered to ensure all of the oil and any residue can be completely drained from the oil tank.

Front mount:  Machined for 5/16-18NC hardware.

Rear mount: Accepts standard rear oil tank mount for Harley-Davidson Softail 1999 and under.

Oil filler neck:  Inner diameter is 1.25", designed to accept stock Harley-Davidson oil caps from Softails 1999 and under.

Oil capacity:  2.89 Quarts

Battery box internal measurements are 7 3/8” wide by 4” long.

Oil tank material:  6061-T6 Aerospace aluminum.

Tanks are built to order, ship date will be approximately two weeks after order is placed. For more information contact us at sales@motoxcycle.com
