MotoXcycle MXC 5" aluminum round oil tank with spin on filter.

This MotoXcycle MXC 5 inch round oil tank is ten inches wide and comes with a recessed spin on oil filter compartment.

We developed it for custom motorcycle applications based on Harley-Davidson engines and specifications.

Bungs are all 1/4 NPT, oil filler neck fits push in oil caps from 1999 and under stock Harley-Davidson softails.

Made with thick 1/8" 6061 T-6 aluminum tubing.

For more information contact us through e-mail at sales@motoxcycle.com

or call us at 514-836-4615

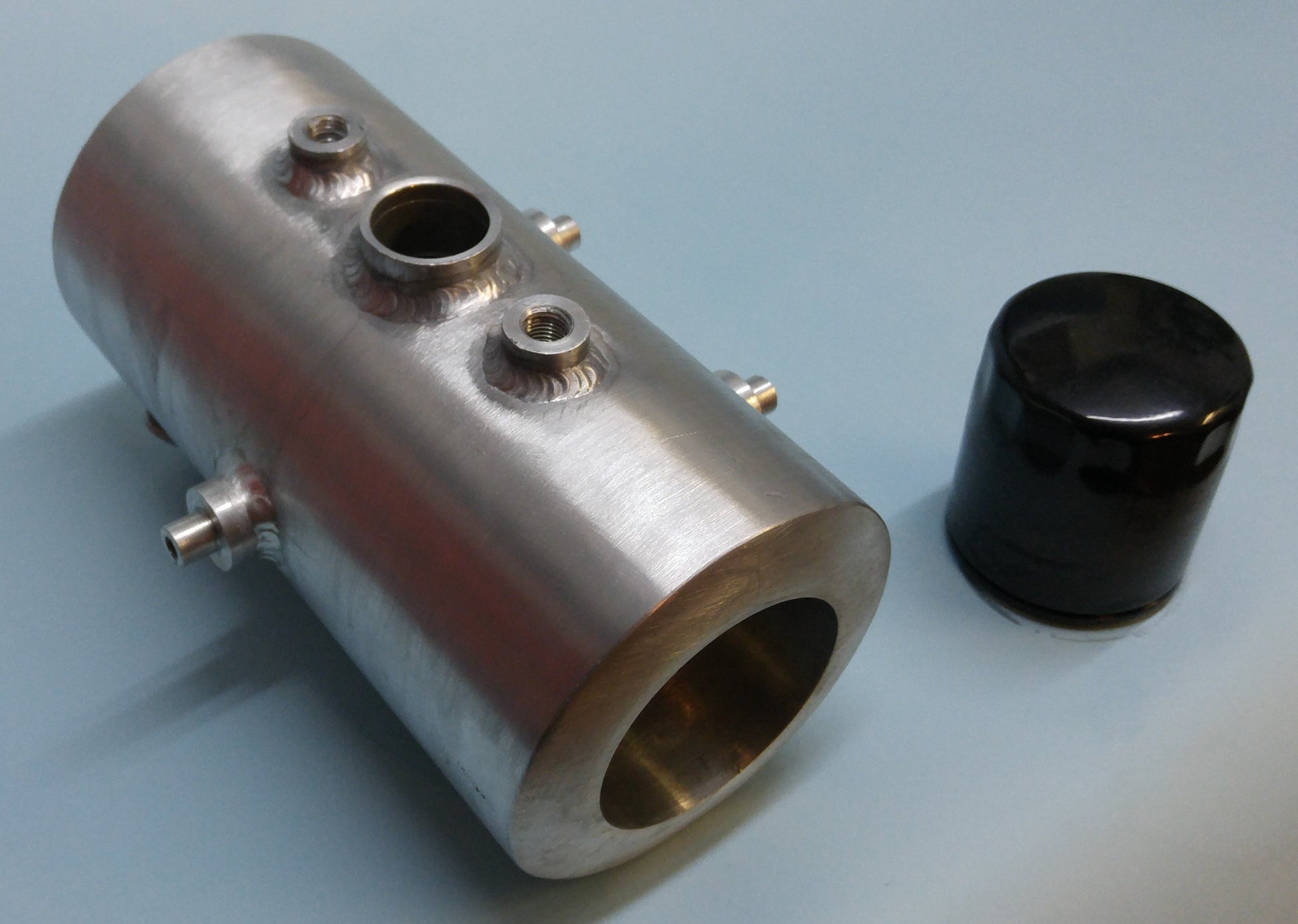

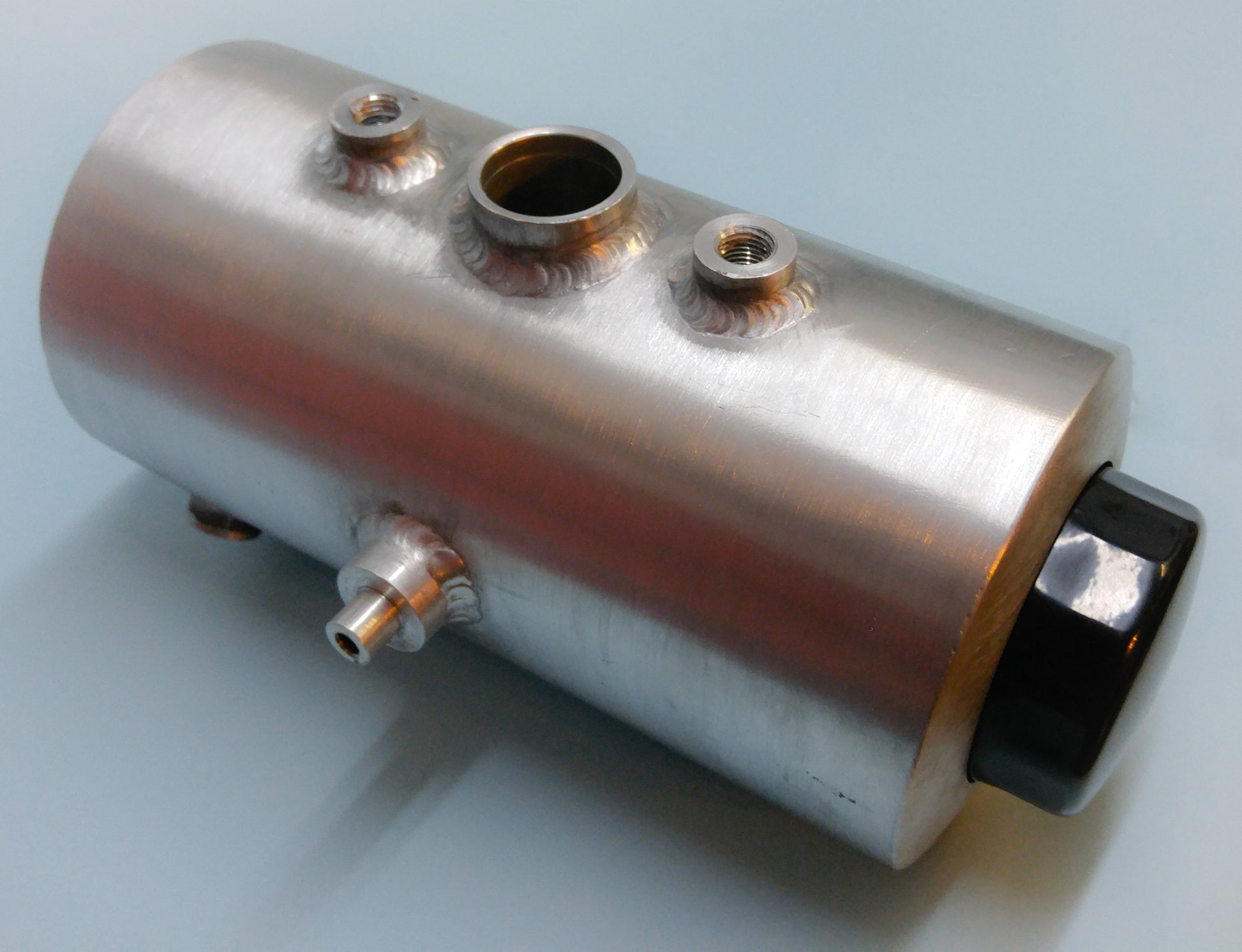

This beautiful hand crafted 5” round aircraft aluminum oil tank features a compartment to accept a spin-on oil filter.

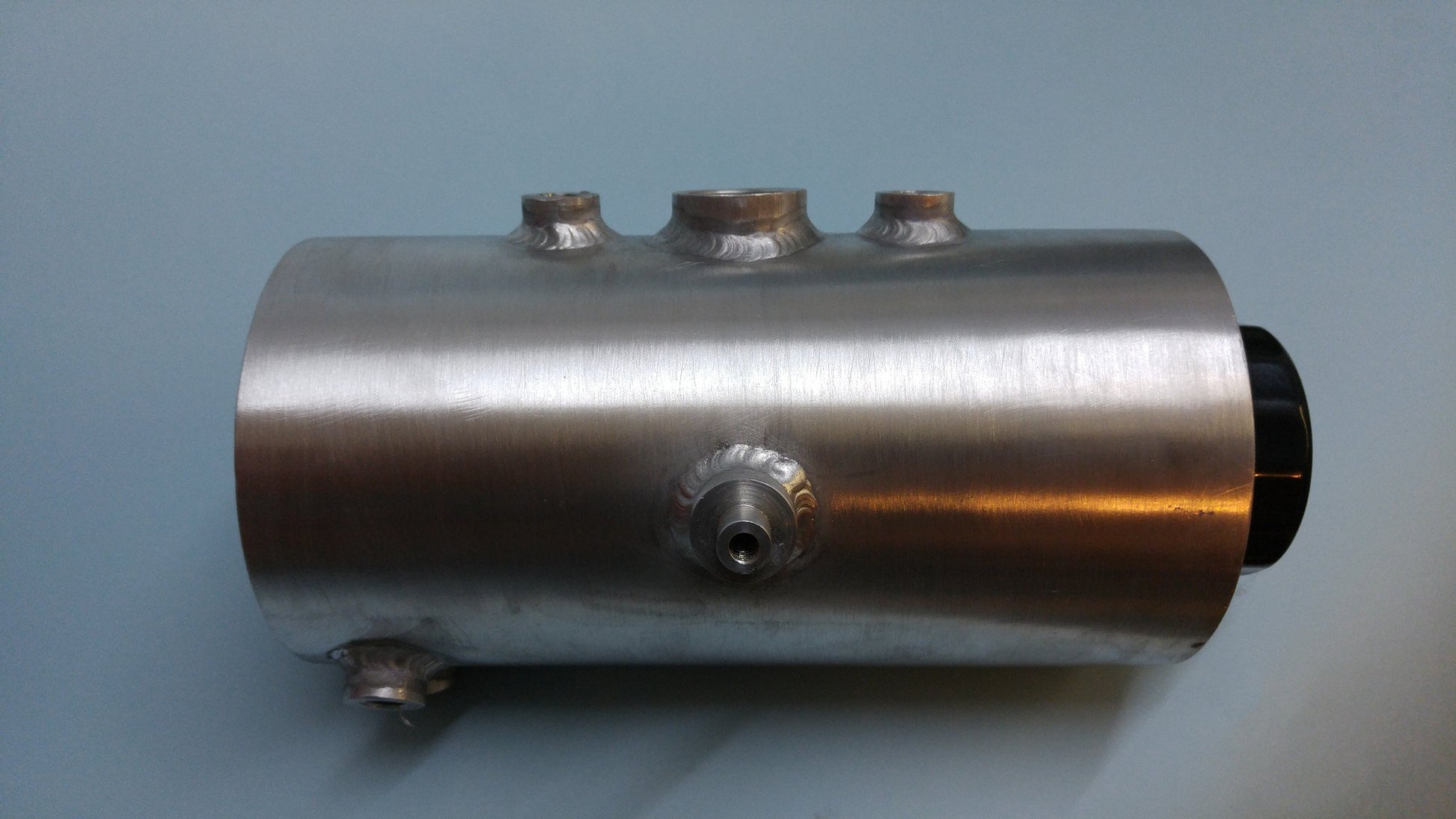

The inlet/outlet group is comprised of bungs welded to the tank. The feed bung is internally raised to prevent contaminants from entering into the oil delivery system, the vent bung has an internal tube that goes to the top wall of the tank and a return bung that feeds the oil to the oil filter. The drain bung found towards the rear of the inlet/outlet group and at the very bottom of the tank is internally tapered to ensure all of the oil and any residue can be completely drained from the oil tank.

Technical specifications:
Tank width: 10”

Tank diameter: 5"

Inlet/Outlet group location:  35 degrees up from lowest point.  When the tank is installed on the bike, starting from the throttle side the bung sequence is Feed, Vent, Return.  The Drain bung is at 0 degrees and is the bung closest to the rear of the bike. All inlet/Outlets (bungs) are machined to accept 1/4NPT fittings. Return bung has an internal line that brings the oil to the far left of the tank to give the oil time to mix before returning to the feed bung. The Vent bung has an internal line that provides venting close to the internal ceiling of the tank.

Front mount:  Machined for 5/16-18NC hardware.

Rear mount:  Machined for 5/16-18NC hardware.

Oil filler neck:  Inner diameter is 1.25", designed to accept stock Harley-Davidson oil caps from Softails 1999 and under.

Oil capacity: 3.125 quarts/ 2.96 liters

Battery box internal measurements are 7 3/8” wide by 4” long.

Oil tank material:  6061-T6 Aerospace aluminum.

Tanks are built to order, ship date will be approximately two weeks after order is placed. For more information contact us at sales@motoxcycle.com
