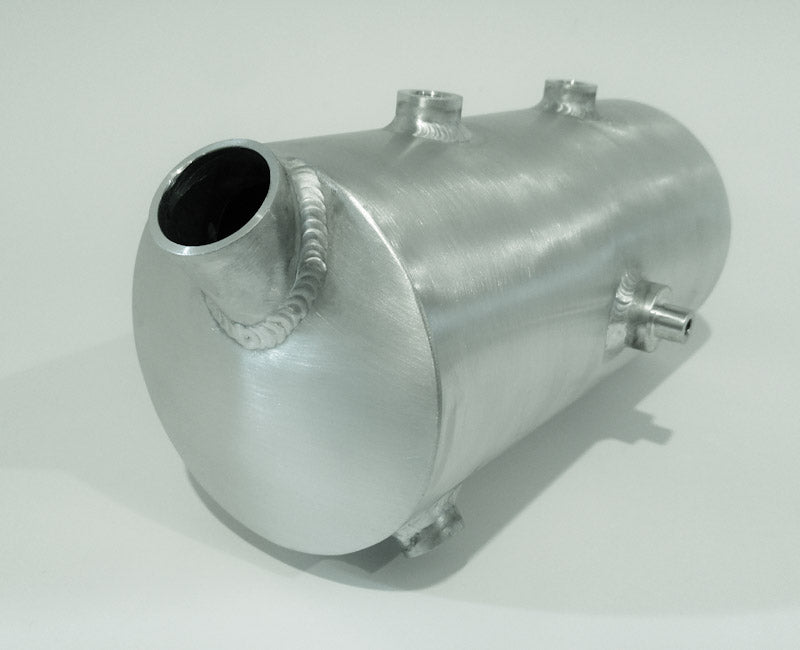

MotoXcycle MXC 5" round side fill oil tank with spin on filter compartment.

This MotoXcycle MXC 5" round oil tank is designed to accept a stock spin on Harley-Davidson oil filter. Featuring 6061-T6 aluminum and thick wall construction this tank is one of the most robust tanks out there.

Tank width for  is 10 inches and the oil filler neck on all tanks accept oil caps from 1999 and under Harley-Davidson Softails.

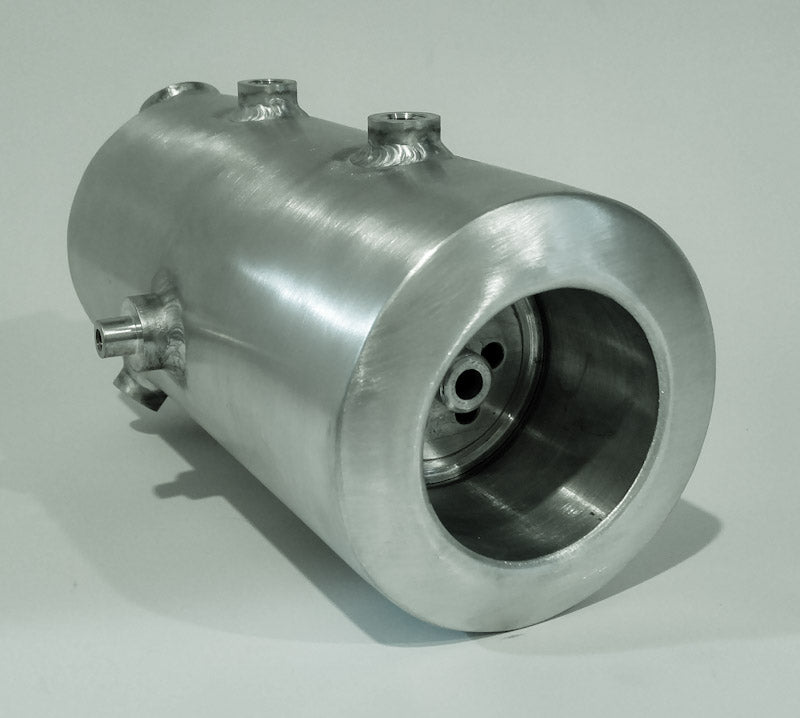

This beautiful hand crafted 5” round aircraft aluminum oil tank features a compartment to accept a spin-on oil filter and a battery box.

Technical specifications:

Tank width: 10 “
Tank diameter: 5"

Inlet/Outlet group individual placement and specifications:

  The return bung is on the top left side of the tank has an internal line that brings the oil to the oil filter. The vent bung is on the top right side of the tank. The feed bung is up 35 degrees from the bottom of the tank and is internally raised to prevent contaminants from entering into the oil delivery system. The drain bung is at 0 degrees on the very bottom of the tank and is the bung closest to the rear of the bike. The drain plug is internally tapered to ensure all of the oil and any residue can be completely drained from the oil tank.  All inlet/outlets (bungs) are machined to accept 1/4NPT fittings.

Front mount:  Machined for 5/16-18NC hardware.

Rear mount: Machined for 5/16-18NC hardware.

Oil filler neck:  Inner diameter is 1.25", designed to accept stock Harley-Davidson oil caps from Softails 1999 and under.

Oil capacity: 3.125 quarts/ 2.96 liters

Battery box internal measurements are 7 3/8” wide by 4” long.

Oil tank material:  6061-T6 Aerospace aluminum.

Tanks are built to order, ship date will be approximately two weeks after order is placed. For more information contact us at sales@motoxcycle.com
