MotoXcycle MXC Custom Round Indent Oil Tank for Custom Harley-Davidson Motorcycle Builds

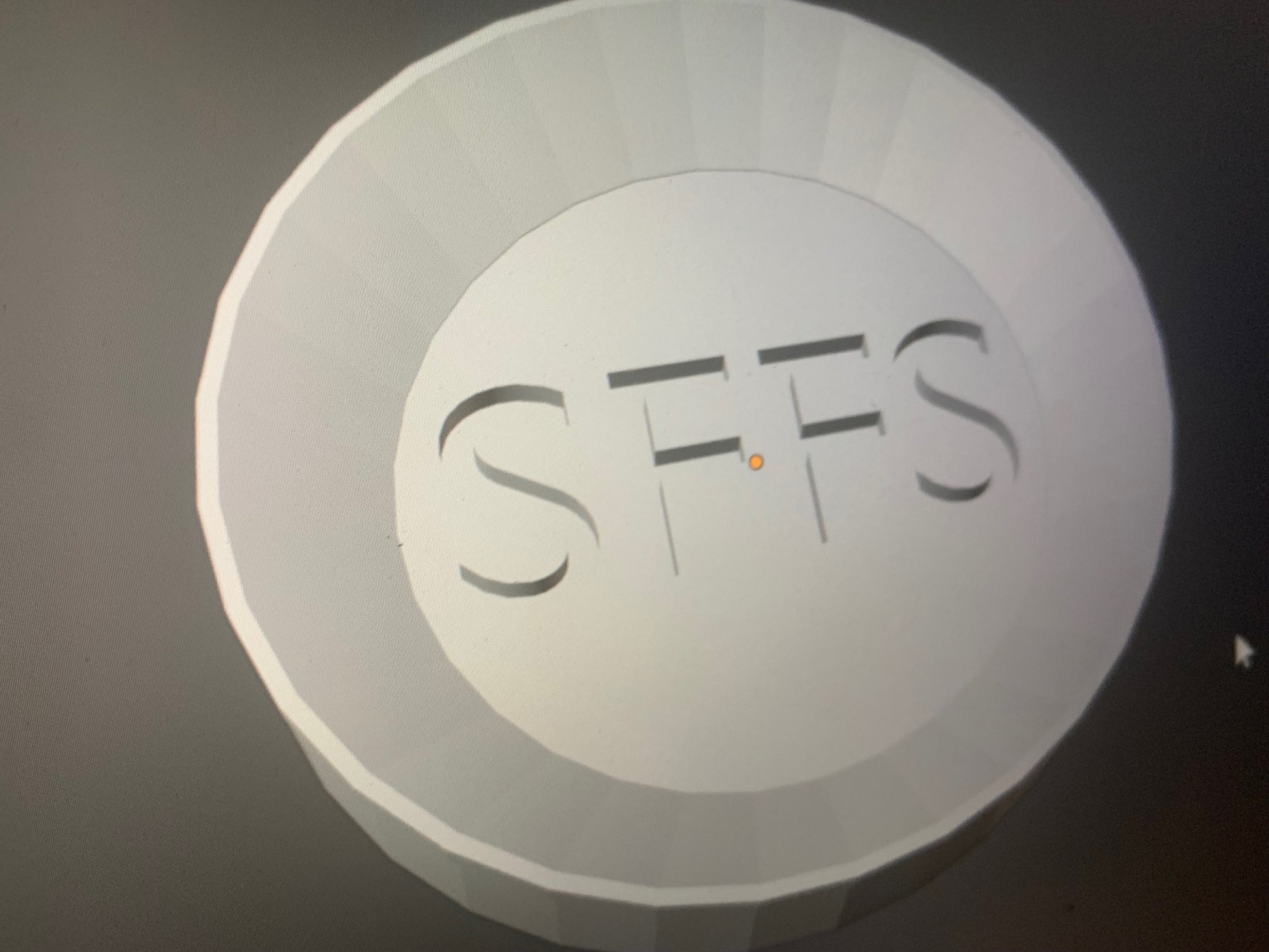

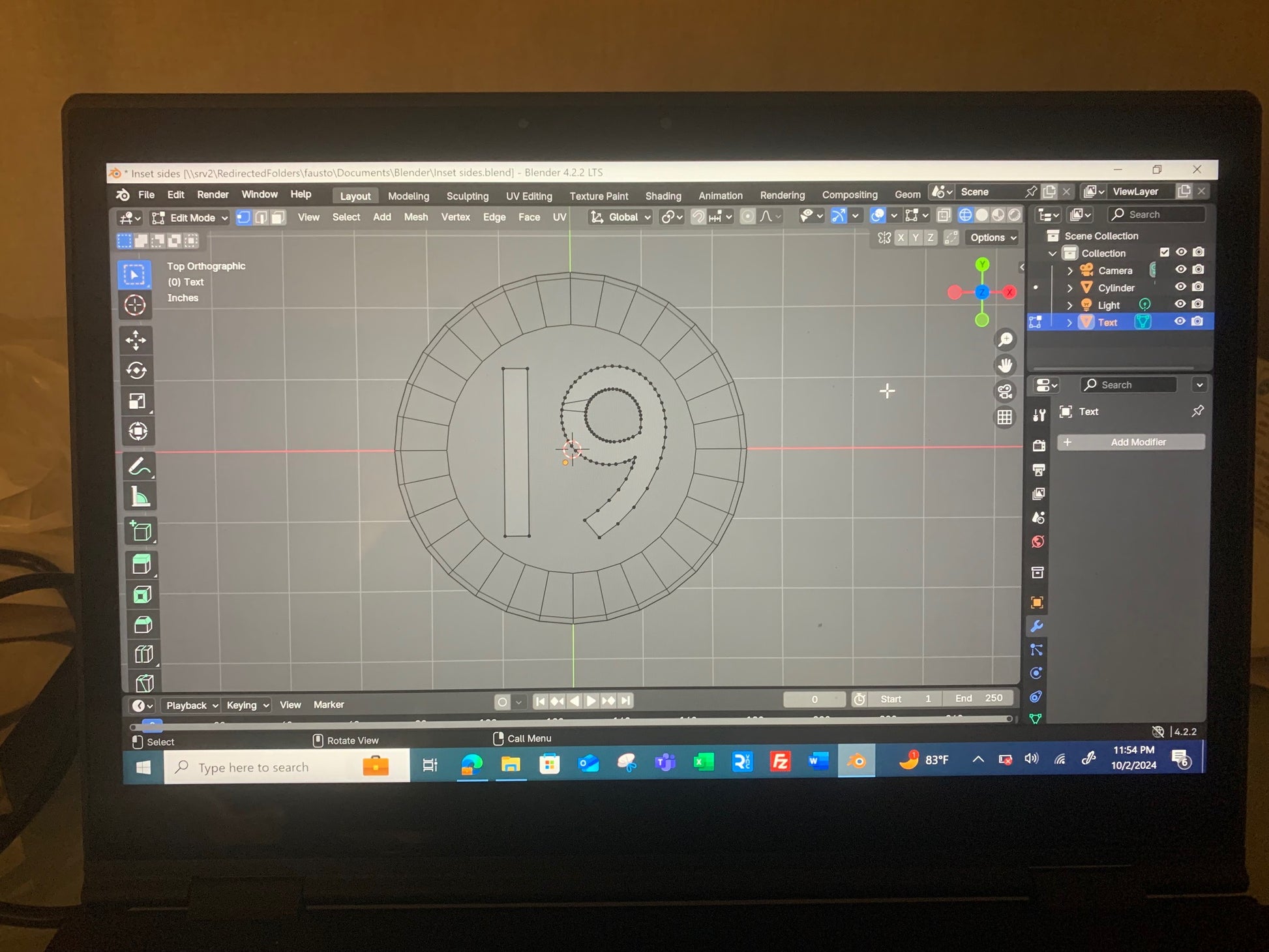

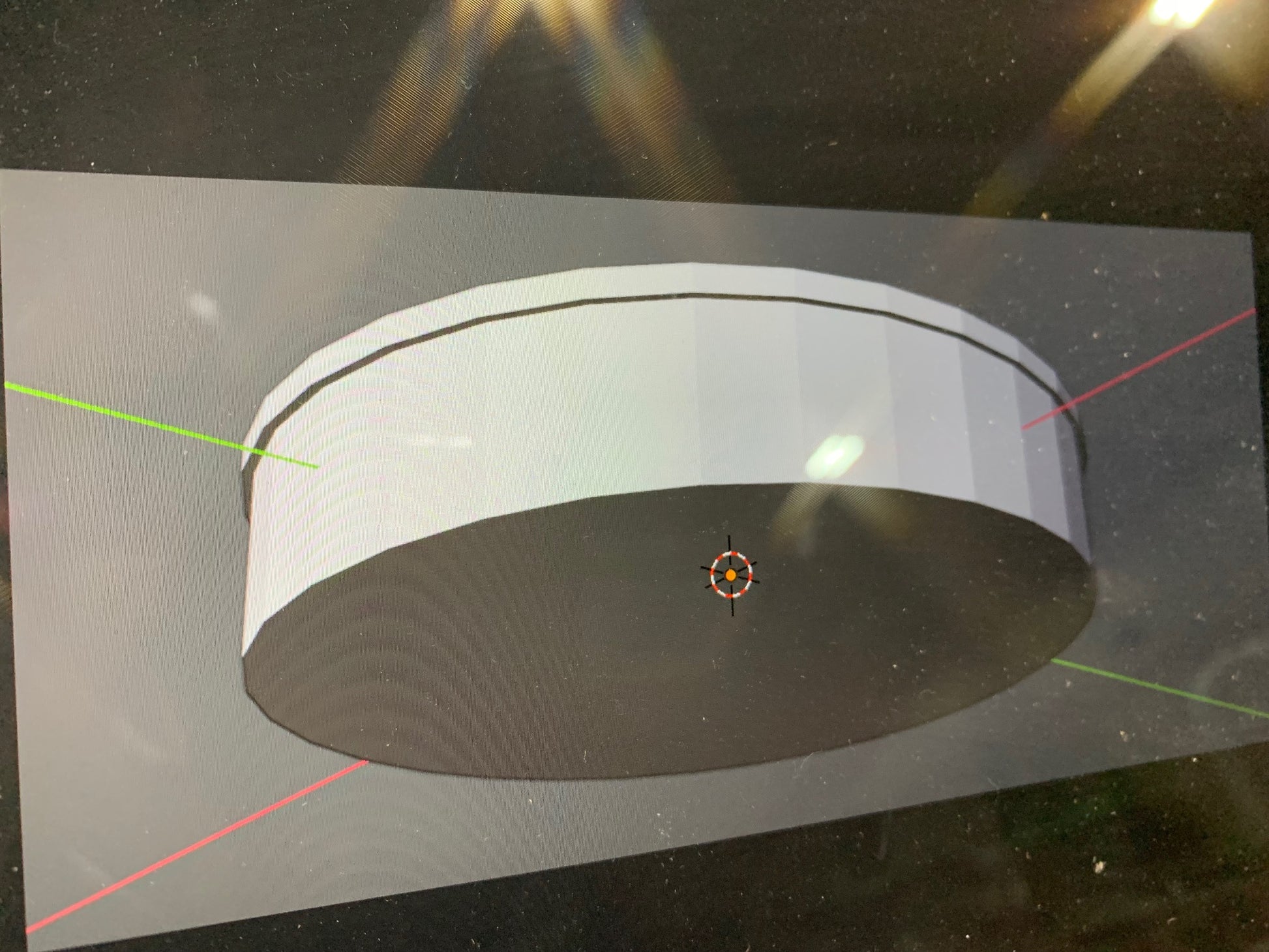

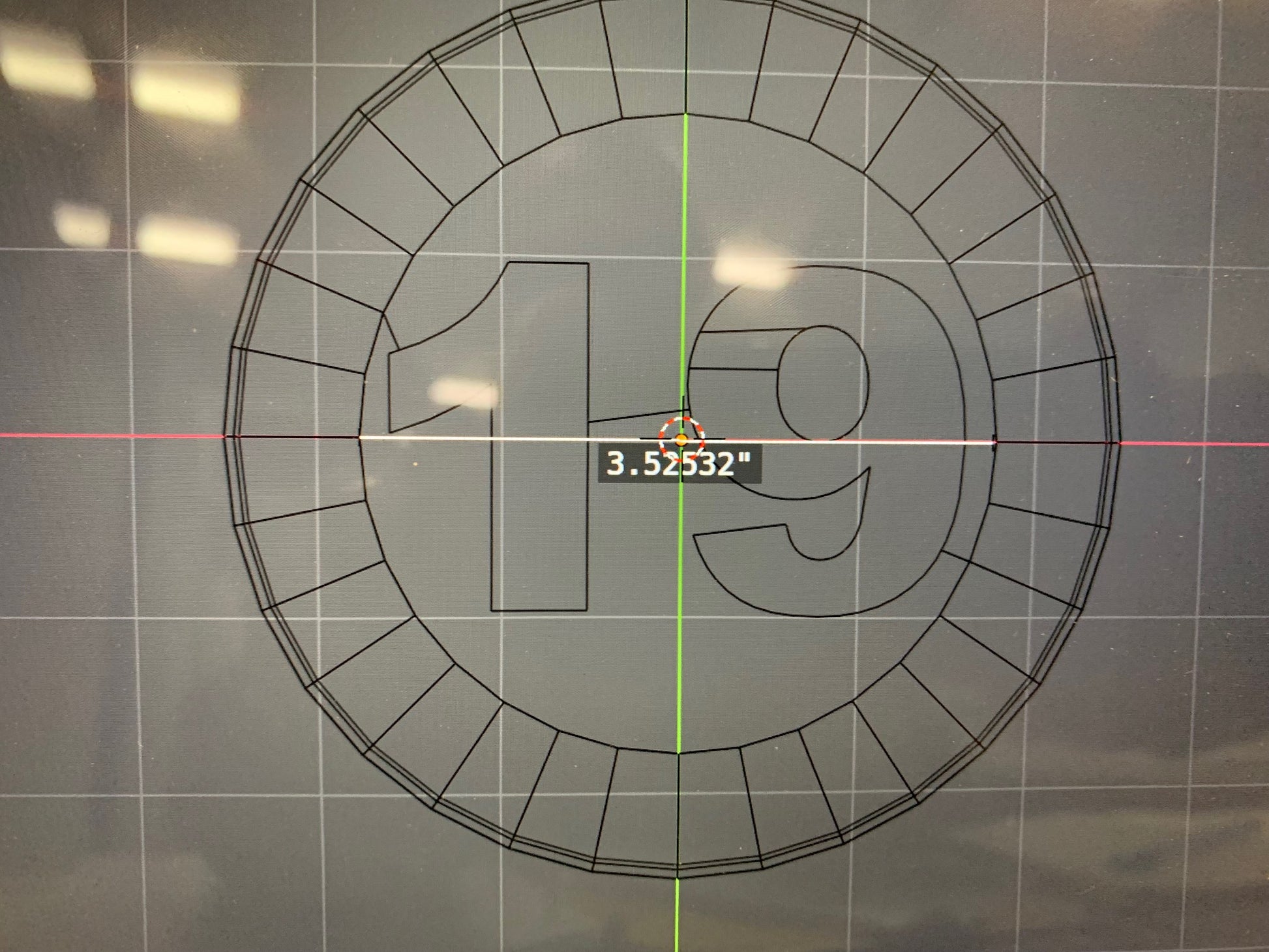

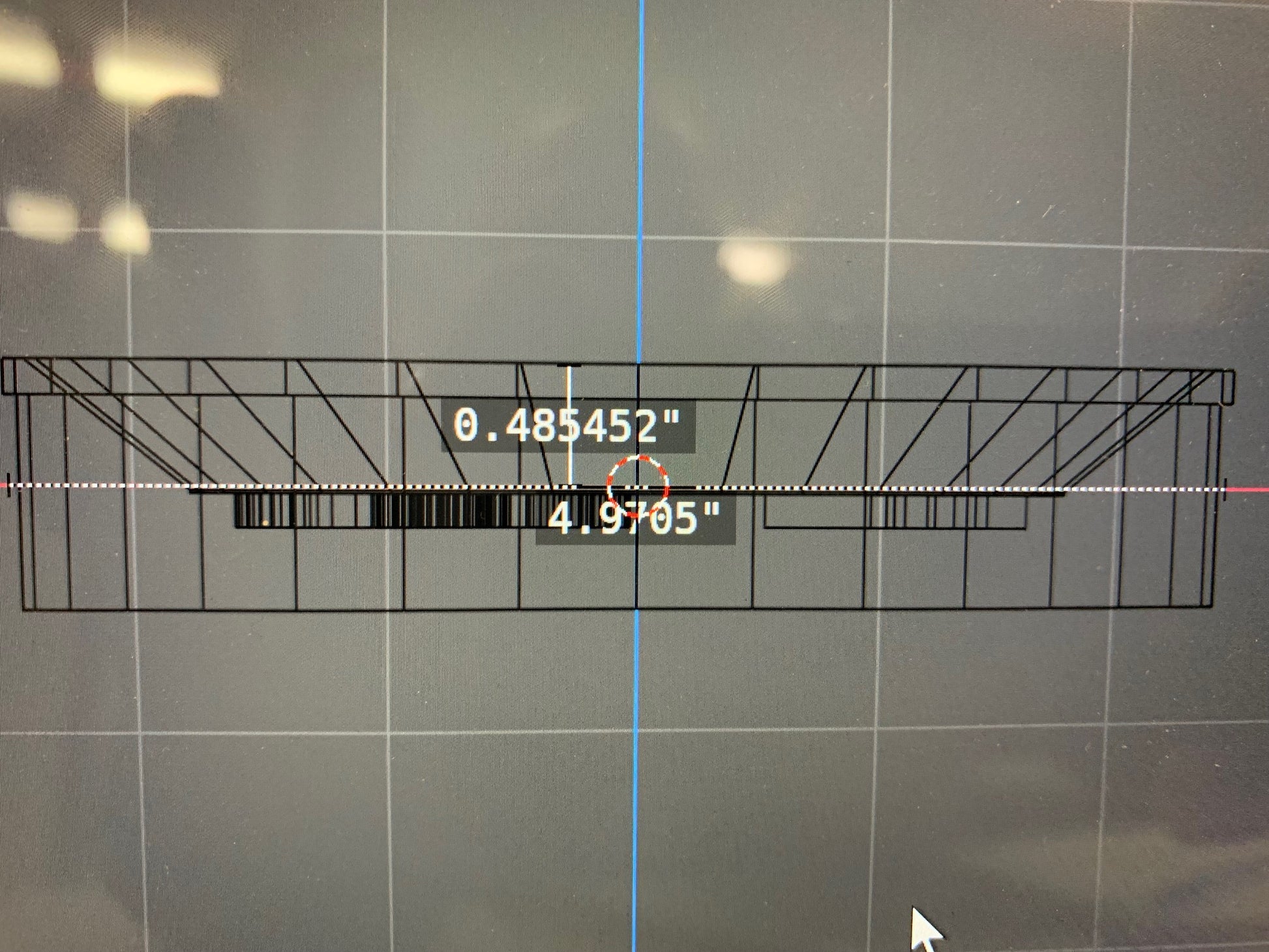

This MotoXcycle MXC custom indent tank comes with the graphics of your choice machined into the sides.  We design the sides of the tank with your chosen graphic and send you a digital 3D representation of what the sides of the tank will look like. We then custom machine the sides and build your tank to your specifications.

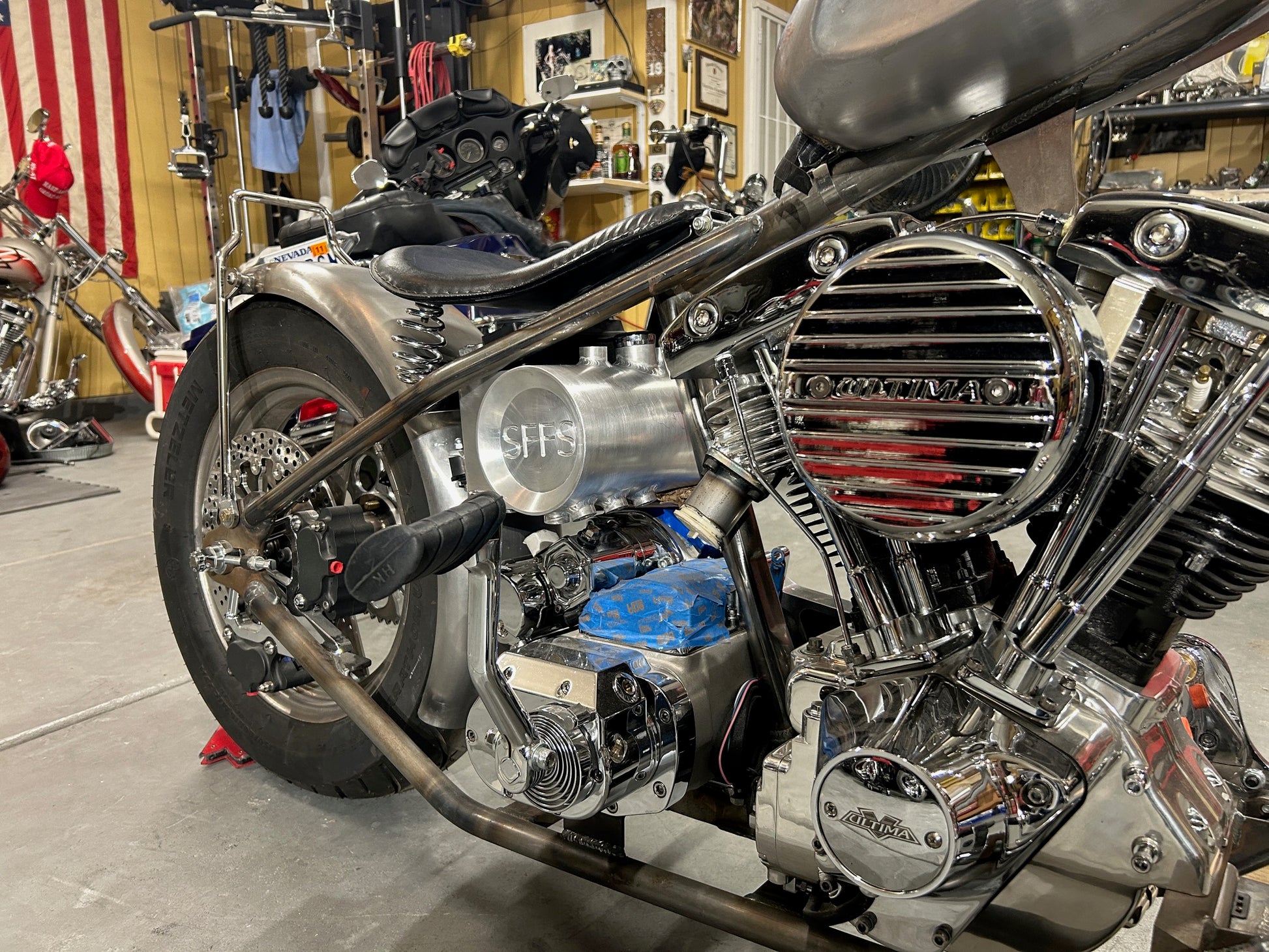

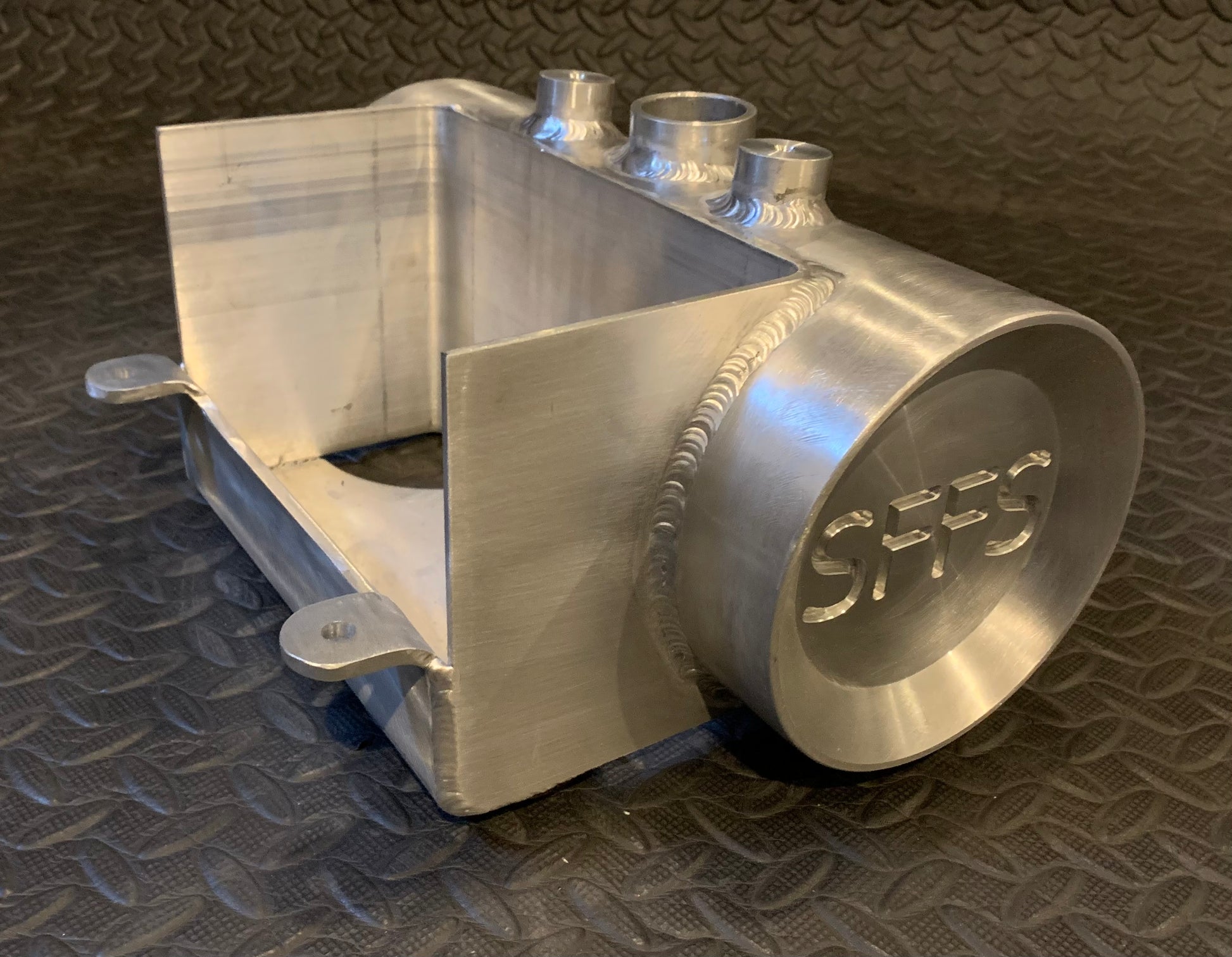

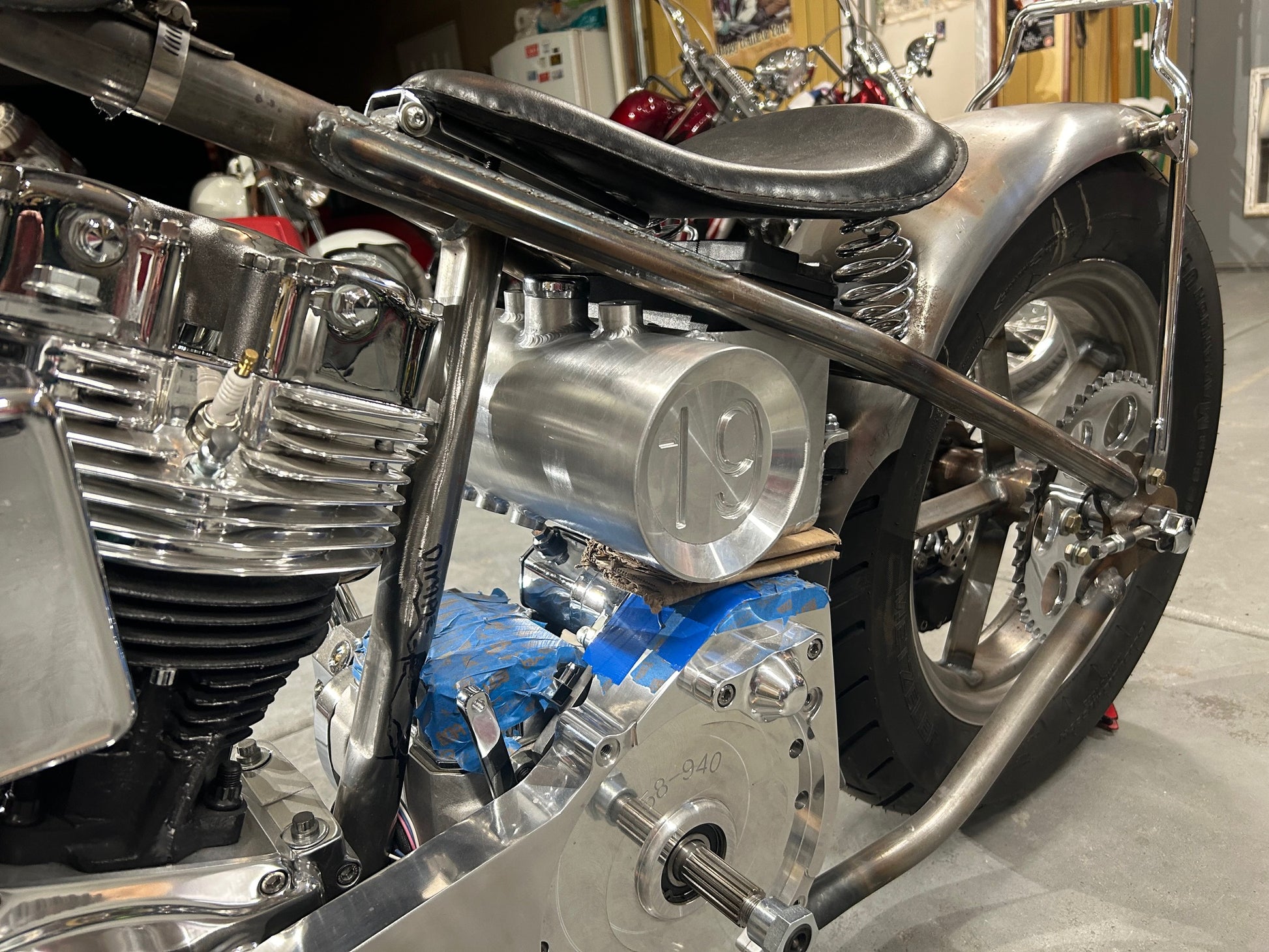

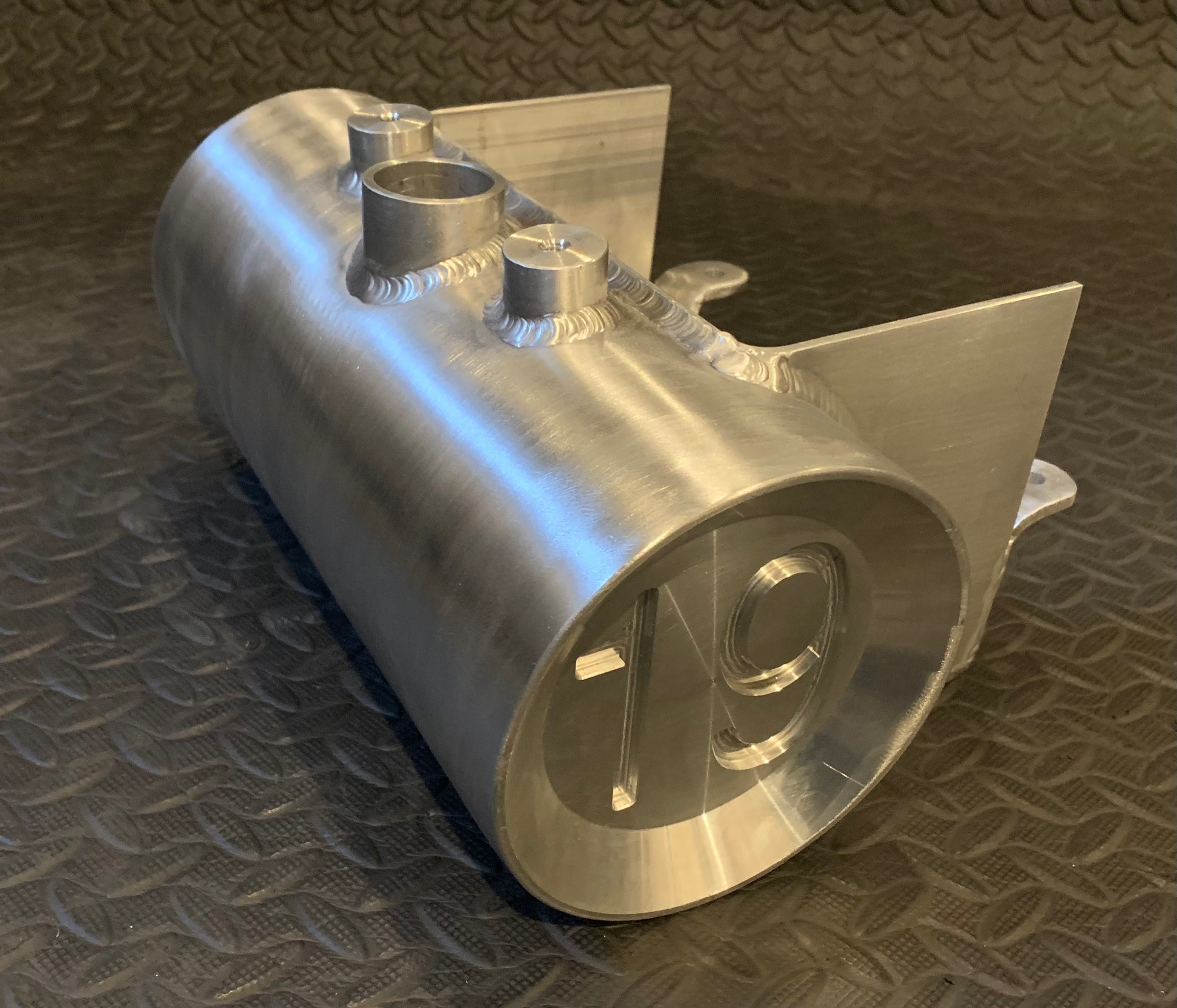

This beautiful hand crafted 5” round aircraft aluminum oil tank features custom CNC machined side plates and a battery box.

Technical specifications:
Tank width: 12.25"

Tank diameter: 5"

Inlet/Outlet group location:  35 degrees up from lowest point.  When the tank is installed on the bike, starting from the throttle side the bung sequence is Feed, Vent, Return.  The Drain bung is at 0 degrees and is the bung closest to the rear of the bike. All inlet/outlets (bungs) are machined to accept 1/4NPT fittings. Return bung has an internal line that brings the oil to the far left of the tank to give the oil time to mix before returning to the feed bung. The feed bung is internally raised to prevent contaminants from entering into the oil delivery system. The vent bung has an internal line that provides venting close to the internal ceiling of the tank. The drain bung found towards the rear of the inlet/outlet group and at the very bottom of the tank is internally tapered to ensure all of the oil and any residue can be completely drained from the oil tank.

Front mounts:  Machined for 5/16-18NC hardware.

Rear mount: Accepts standard rear oil tank mount for Harley-Davidson Softail 1999 and under.

Oil filler neck:  Inner diameter is 1.25", designed to accept stock Harley-Davidson oil caps from Softails 1999 and under.

Oil capacity: 3.125 quarts/ 2.96 liters

Battery box internal measurements are 7 3/8” wide by 4” long.

Oil tank material:  6061-T6 Aerospace aluminum.

Tanks are built to order, ship date will be approximately two weeks after order is placed. For more information contact us at sales@motoxcycle.com
